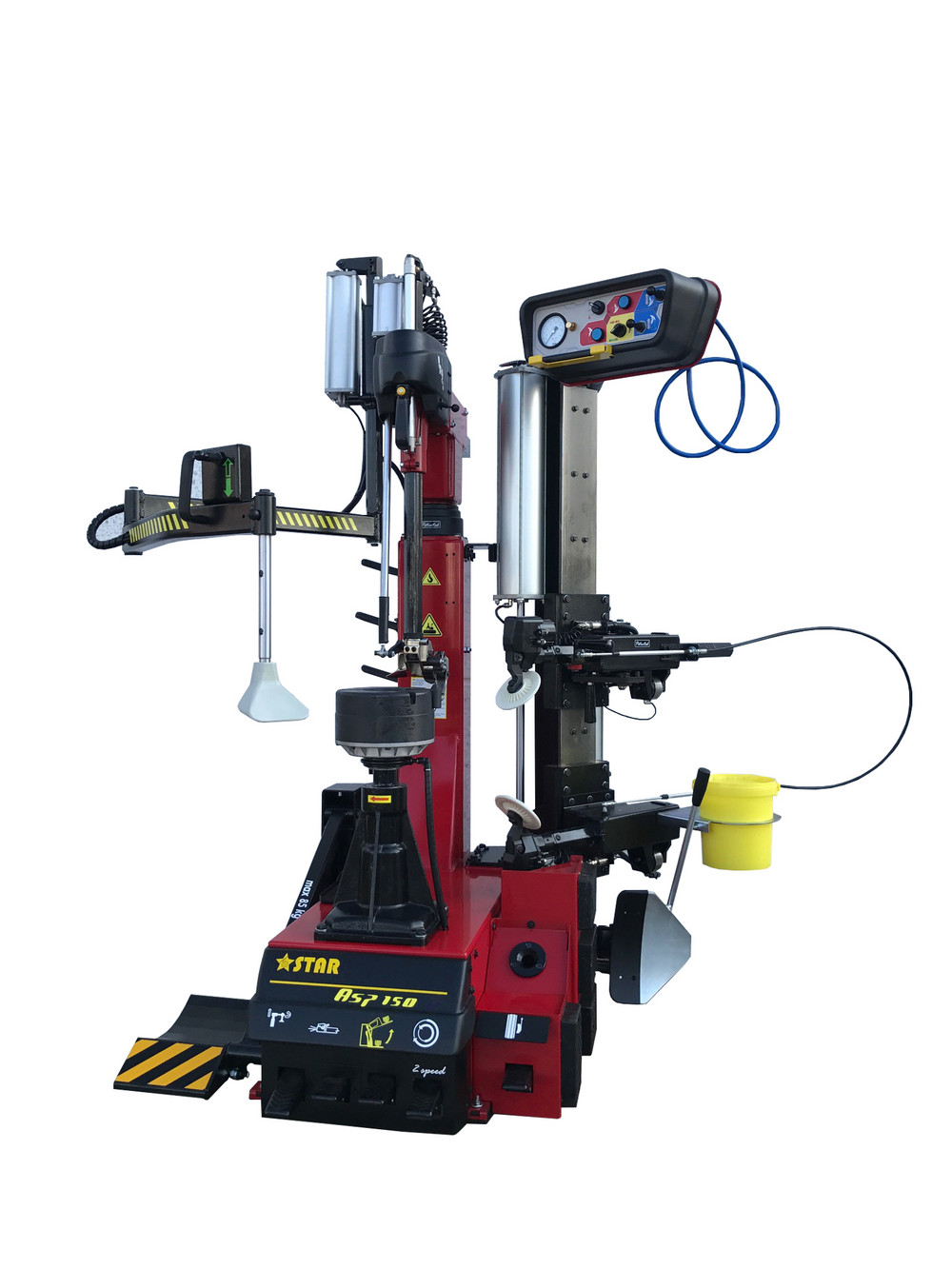

TYRE CHANGER ASP 150


Download technical sheet

Newly conceived universal “Lever-Less” tire changer ideal for professionals in the field and suitable for dismantling and mounting wheels of cars and vans of considerable weight and dimensions with rims of 12 “to 30” diameter. The side disc stalling system is designed to simplify ordinary maintenance tasks. Thanks to dedicated scrolling details. Supplied standard in 2 speed version, with pedal inflation (GP version) and with manual wheel lock system. *Available in 4 modular versions.

- ASP 150 - V400-3 2V, G.P., BLOCCAGGIO MANUALE, IPL2. / V400-3 2V, G.P., MANUAL BLOCKS, IPL2.
- ASP 150 M - CON MOTOINVERTER, G.P., BLOCCAGGIO AUTOMATICO, IPL2. / WITH MOTOINVERTER, G.P., AUTOMATIC BLOCKING, IPL2.
- ASP 150 F - CON MOTOINVERTER, G.P., BLOCCAGGIO AUTOMATICO, IPL2, KIT STALLONATORE. WITH MOTOINVERTER, G.P., AUTOMATIC BLOCKING, IPL2, KIT BEAD BREAKER.



View gallery
TYRE CHANGER ASP 150
  • Capacità di bloccaggio / Locking capacity 12" - 30"
    Diametro massimo ruota / Max wheel diameter  1150 mm (45")
    Larghezza massima ruota / Max wheel width 380 mm (15")
    Forza stallonatore / Disc bead breaker force 800 Kgf (1765 lbf)
    Velocità di rotazione  / Turntable speed 8-15 rpm (8rpm 1sp)
    Livello di rumorosità / Noise level < 70 ± 3 dB(A)
    Pressione di esercizio / Working pressure 10 Bar (145 psi)
    Capacità sollevatore / Lift capacity 85 Kg (185 lbs)
    Motore el. trifase / 3-phase el. motor 0.8 - 1.1 kW (1.1 - 1.5 Hp)
    Motore el. monofase / 1-phase el. motor 0.75 kW (1.0 Hp)
    Peso netto massimo / Max net weight 510 Kg (1.125 lbs)

TYRE CHANGER ASP 150

Plase, select:


Code: ASM01XSXX0159

Quantity:

Availability: not available
