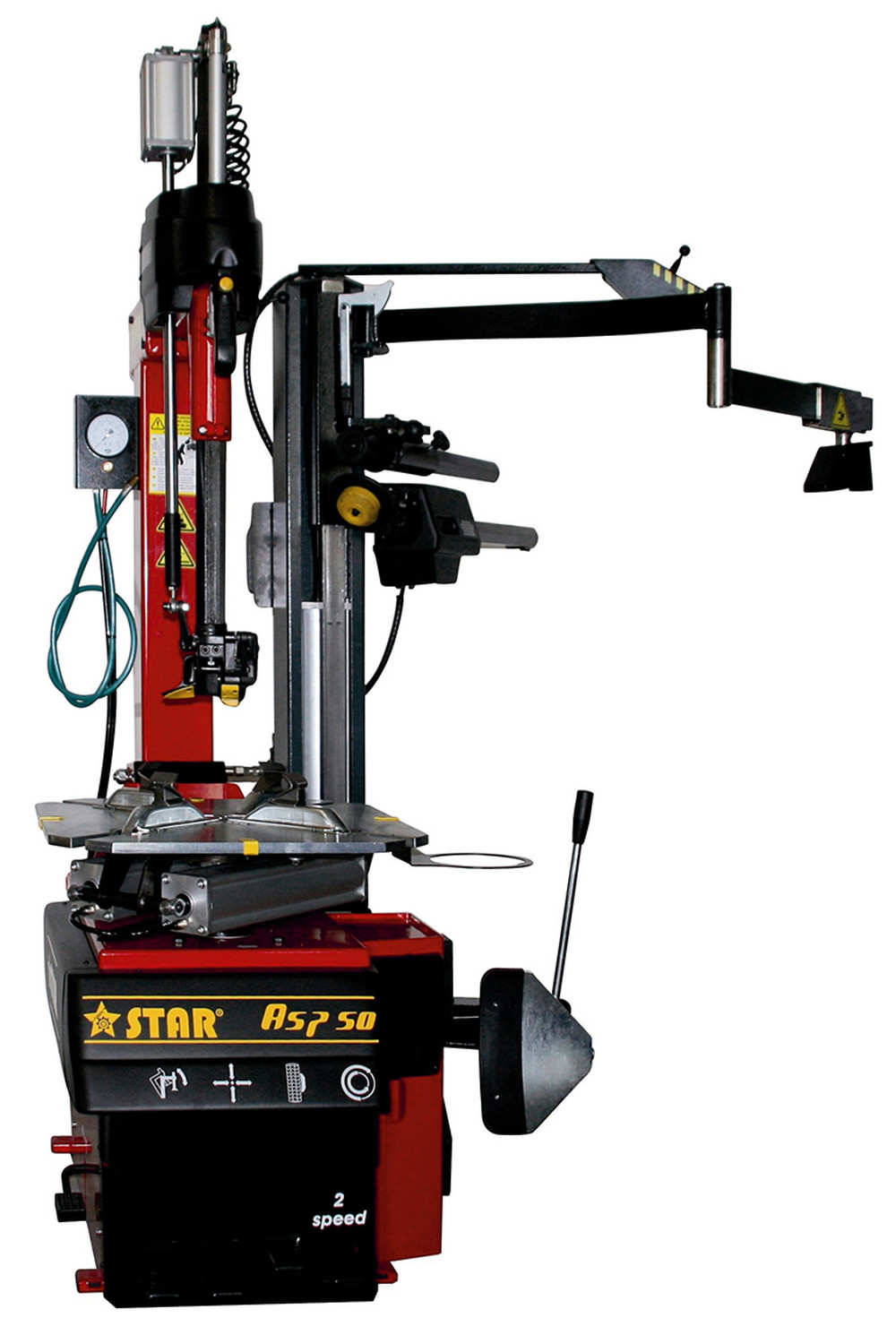

TYRE CHANGER ASP 50


Download technical sheet

Newly designed, patented super-automatic tire changer, suitable for dismantling and assembling wheelchairs and light weight commercial vehicles with remarkable weight and dimensions. It's a good compromise between quality and price. Equipped with clamping clasps, which allow to tighten 10 "to 24" circles, the vertical pole equipped with automated patented "Lever-Less" tool. Standard with TPH pneumatic device to facilitate the assembly and dismantling of difficult tires, such as run-flat or lowered.

    • Clamping capacity 10" - 25"
    • External clamping 10" - 22"
    • Internal clamping 13" - 25"
    • Maximum wheel diameter 1060 mm (42")
    • Maximum wheel width 370 mm (14.5")
    • Bead breaker force 2900 Kgf (6395 Ibf)
    • Rotation speed 8-15 rpm (8 rpm 1sp)
    • Noise level < 70 +/- 3 dB(A)
    • Operating pressure 8-10 Bar (116-145 psi)
    • Motor El. Three-phase 0.8-1.1 KW (1.1-1.5 Hp)
    • Motor El. Monofase 0,75 KW (1,0 Hp)
    • Net weight 380 Kg (840 Ibs)
    • Net weight - version T.I 395 Kg (870 Ibs)

TYRE CHANGER ASP 50

Plase, select:


Code: ASM01XSXX0180

Quantity:

Availability: not available
