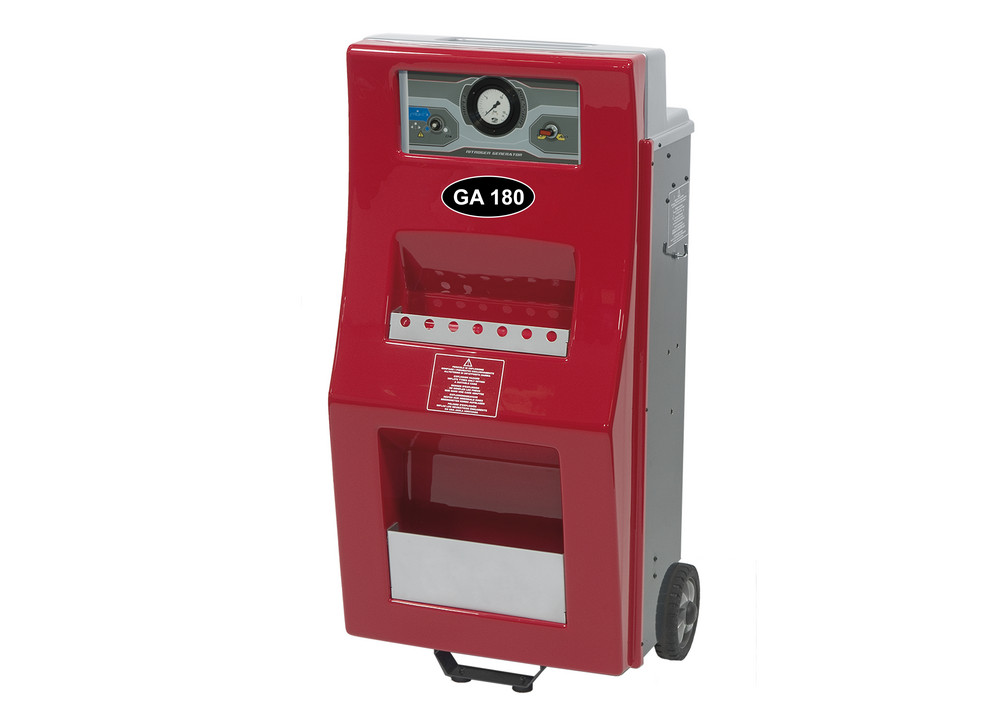

NITROGEN GENERATOR G 180


NITROGEN GENERATOR having capacity of 18,0 Nm3/h (5.000 lit/h), dedicated for the professional inflation of car and motorcycle tyres. The nitrogen generators produce nitrogen by the separation of the entering compressed air through membrane filters. This membrane separates oxygen molecules from the nitrogen ones. At the generator outlet the nitrogen purity is 95%. To obtain a good starting level of nitrogen purity, the entering compressed air goes through an oil-separating filter in order to retain solid and oil particles up to 0.01 micron. After that the air passes through an activated carbon filter to eliminate any trace of vapour from the gas.



  • Capacity

    18.000 lit/h

    Nitrogen purity

    95%

    Working pressure

    8-12 bar (145-174 psi)

    Tank capacity

    100 lit

    Weight

    52 Kg (115 lbs)

NITROGEN GENERATOR G 180

Code: AAZ01XSXX0002

Quantity:

Availability: not available
